what you’ve wanted for an innovative tooling solution.
• Chip breaker designed for good chip flow ensures chip control even in cutting conditions with poor chip evacuation.
• High precision FS and MS chip breakers actualize high precision machining minimizing dimension deviations.
FS • MS Chip Breaker
As the industries continue to advance, the demand for unmanned automatic lathe and machining hard-to-cut materials for small precise components of automobile, medical appliance and general machinery have been increasing. Especially, pure titanium (5832-2) and titanium alloy (5832-3) used for high precision parts such as implants are known to have poor machinability due to high cutting heat and welding which requires high precision and good surface finish. Also, machining components of automobile and general machinery require stable tool life and chip control even in high speed and high feed cutting conditions.
KORLOY ̓s newly launched chip breakers, ultra-precision MS and FS for Auto Tools realizes high machinability in ultra-precision components such as implants, automobiles and general machinery made of hard-to-cut materials machining.

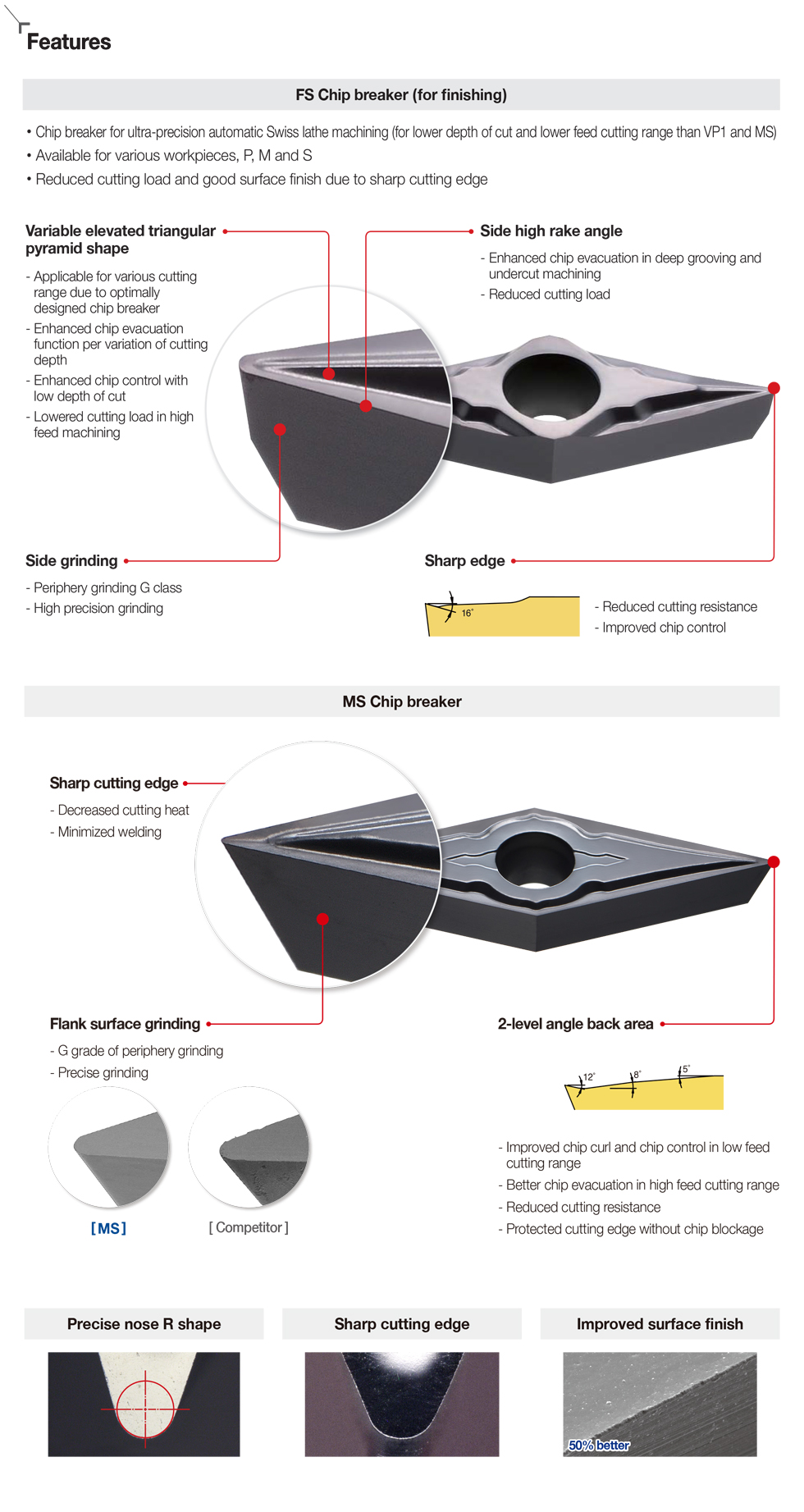

The FS chip breaker has a variable elevated triangular pyramid shape which provides excellent chip control and stable tool life in various cutting range with alloy steel and stainless steel. The MS chip breaker has a special 3D structured design to enhance chip evacuation per variety of cutting path and implemented high precise grinding process to develop a detailed nose R shape with sharp edge. With these, it could minimize cutting heat and built up edge occurrence while machining titanium. It also prevents micro chipping by adapting ultra-fine substrate which equalized refined structure. Special surface treatment added PVD also ensures excellent surface roughness and enhanced tool life with high hardness and treat anti-oxidation.
In addition, tight tolerance and deviation management in producing inserts with FS and MS chip breakers minimizes dimension deviation of corners and products providing convenience to users as it allows users to not
be concerned about tool offset in changing insert corners.
The chip breakers for Auto Tools would provide the best solution to customers in necessity to precisely machine hard-to-cut materials with combination of premium level management in design, manufacturing, and quality, and grades matching like PC8110 and PC5300 having high hardness and thermal resistance.
• Longer tool life
- Ultra-fine substrate and high hardness coating
• High precise tool deviations
- Minimized dimension deviations for each insert corners and items
• Better surface finish
- Mirror-liked finished cutting edge through special surface treatment
• Improved chip control
- Excellent chip cutting and evacuation due to three-dimensional shaped design
